| » Forum Index » Problems and solutions » Topic: help please |
|
Posted on 28/01/11 7:11:22 PM |
|
grumpymchaggis
* Posts: 6 Reply |
help please
Hi guys , i'm really new to all this , a complete noob . I have a small problem that i hope you guys can help me with . My wife asked me to design a couple of flyers for her workplace. The problem is that all the text appears jagged and i cant find a way to make it smooth . Shes happy with the flyers its just that the text looks really unprofessional (which i am ) . I'd appreciate any help i can get .... thanks in advance |
Posted on 28/01/11 8:17:44 PM |
|
Jota120
Ingenious Inventor Posts: 2615 Reply  |
Re: help please
Sorry, are you using Photoshop? Can you give us a image, i.e screen save? Or where did the image come from? |
Posted on 28/01/11 8:38:15 PM |
|
grumpymchaggis
* Posts: 6 Reply |
Re: help please
Thanks for the quick reply Jota120 , I'm using photoshop cs5 .As i said i am completely new to all this and basically bought the book so i could learn how to mess around with my photos etc . My wife needed some flyer designs which mainly consisted of text. I managed to cut out her logo and put it on . Then i put an image up . She then just wanted text with offers etc on there. I select my text type and size and type whats needed but the text appears jaggy and not smooth , i just want normal looking text . Is this possible or do i have to purchase something like Indesign? (which obviously i won't as its only some flyers for my wife). Any help would be great ...... thanks in advance |
Posted on 28/01/11 10:00:50 PM |
|
dejá_vu
Guest Reply |
Re: help please

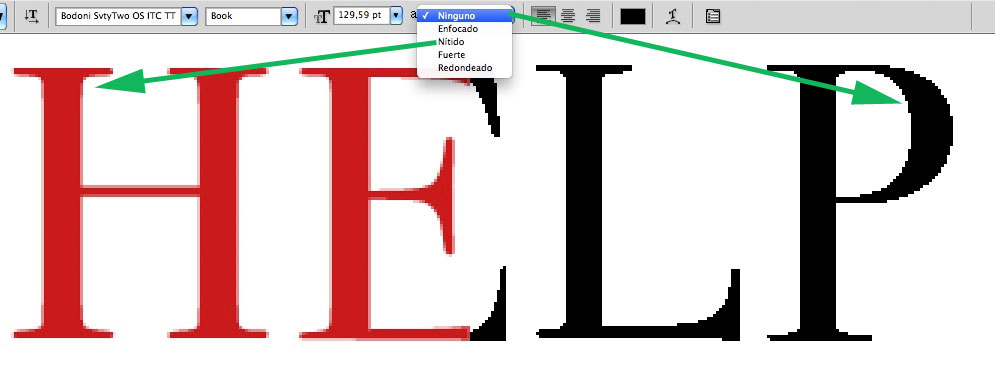

Hi grumpymchaggis, I assume that your font is in good condition because sometimes a "broken" font can give you problems. The most obvious to me is that you're not using a correct aliasing for your text. Let's see, when you use the text tool, next to the options for size, font family, etc, you also have an option for the aliasing mode. Here you can choose between 4 modes, but the most significant for us, in this case, are "none" and "sharp". If your mode is set to "none", the borders of the font, especially in the rounded edges, will look jagged, or pixelated. If you set this option to "sharp" for instance, the font will look better at the rounded areas especially in fonts with serif. I've made a screen capture to show you this. The version of the software is in spanish but the menus are at the same place than in english version. Hope this could help.
_________________ There are men who struggle for a day and they are good. There are men who struggle for a year and they are better. There are men who struggle many years, and they are better still. But there are those who struggle all their lives: These are the indispensable ones. |
Posted on 29/01/11 03:19:53 AM |
|
2tonezack
* Posts: 35 Reply  |
Re: help please
Is the text "jagged" on screen or in print? |
Posted on 29/01/11 06:45:58 AM |
|
Nick Curtain
Model Master Posts: 1768 Reply  |
Re: help please
Hi I suspect that the file resolution may be the issue here. Create a file the same size or larger than the flyer at 300 ppi and see what happens. I'd be interested to see your image and know what file dimension and resolution you are using. The screen shot below is a 12X8 inch file at 300ppi with Times New Roman font at 300pt. The text looks smooth when zoomed in, but the monitor resolution can make the letters look jagged when zoomed out. This will not be reflected in print though. Nick  |
Posted on 29/01/11 11:07:28 AM |
|
grumpymchaggis
* Posts: 6 Reply |
Re: help please
Thanks for all the advice guys . I shall try these out later on and let you know how i got on . Sounds like the problem is the file resolution . As i said i am only a novice playing around and am not in anyway pc savvy . All i done previously was set a file at A4 size and added some text on to the screen . The text was already jagged on screen before i printed . Got stuff on this morning but will get stuck into it tonight ......Thanks again |
Posted on 29/01/11 6:56:55 PM |
|
grumpymchaggis
* Posts: 6 Reply |
Re: help please
And a mans faith in mankind has been restored . Thanks guys on the advice , i set aliasing to sharp and set ppi at 300 and my text now looks smooth , well chuffed  thanks again . I think i've found a new hobby |
Posted on 29/01/11 8:22:08 PM |
|
Nick Curtain
Model Master Posts: 1768 Reply |
Re: help please
This is what the forum is all about and so pleased we could help. Nick |
